VEX Robotics Competition

Team 95111V

Game Types and Explanation

VRC Over Under 2023-2024

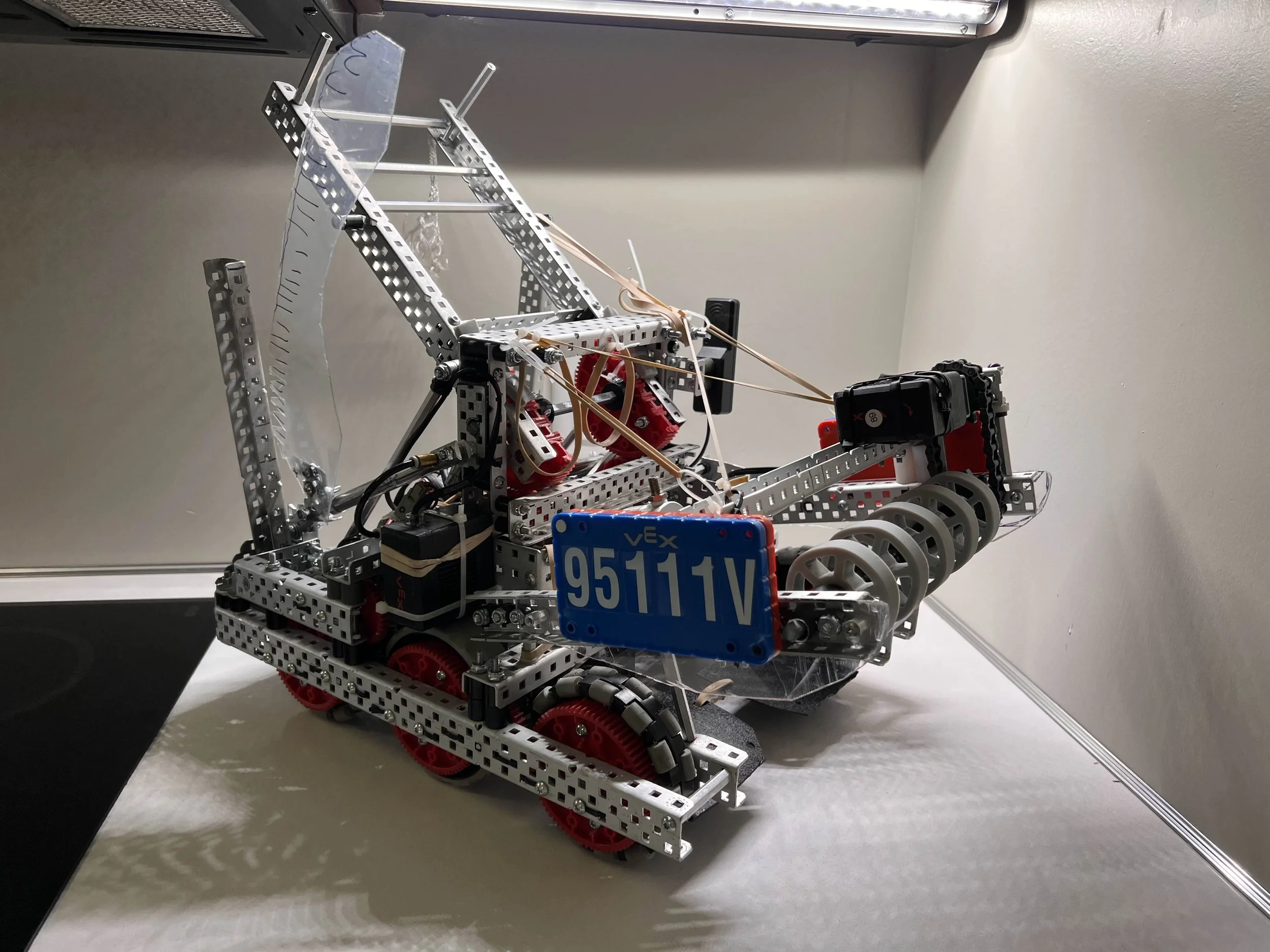

VRC Spin Up 2022-2023

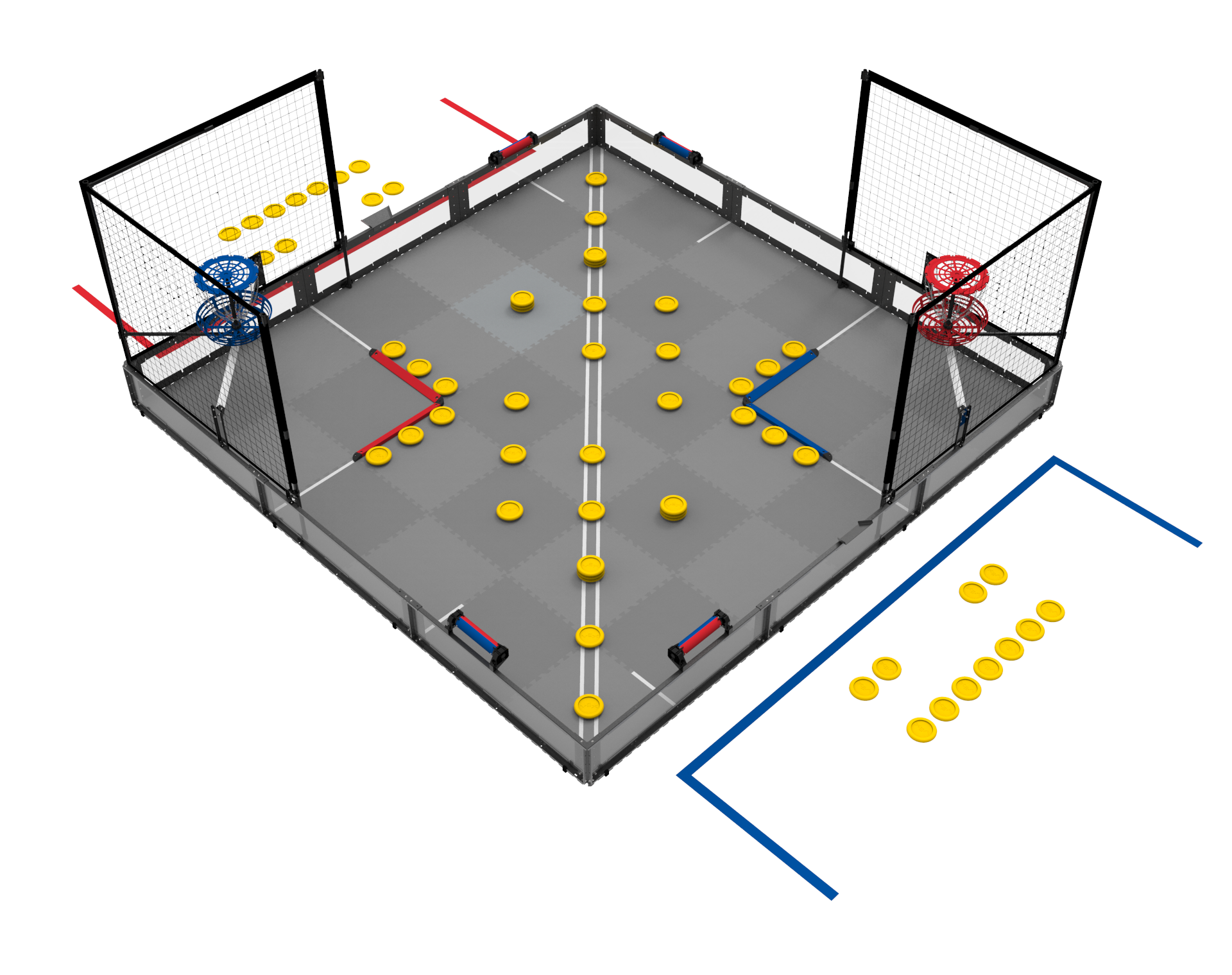

Teams are tasked with launching rings into a high goal to score rings, rings that are scored in the high goal are worth 5 points. However if you miss the high goal and the disk falls into the area under the goal, that disk is worth 1 point for the opposing alliance. Teams are also tasked with turning rollers at each end of the field, each owned roller is worth 10 points for the colored alliance. In the last 15 seconds (endgame) there are no expansion limits, each tile that the team’s robot touch will award the alliance with 3 points.

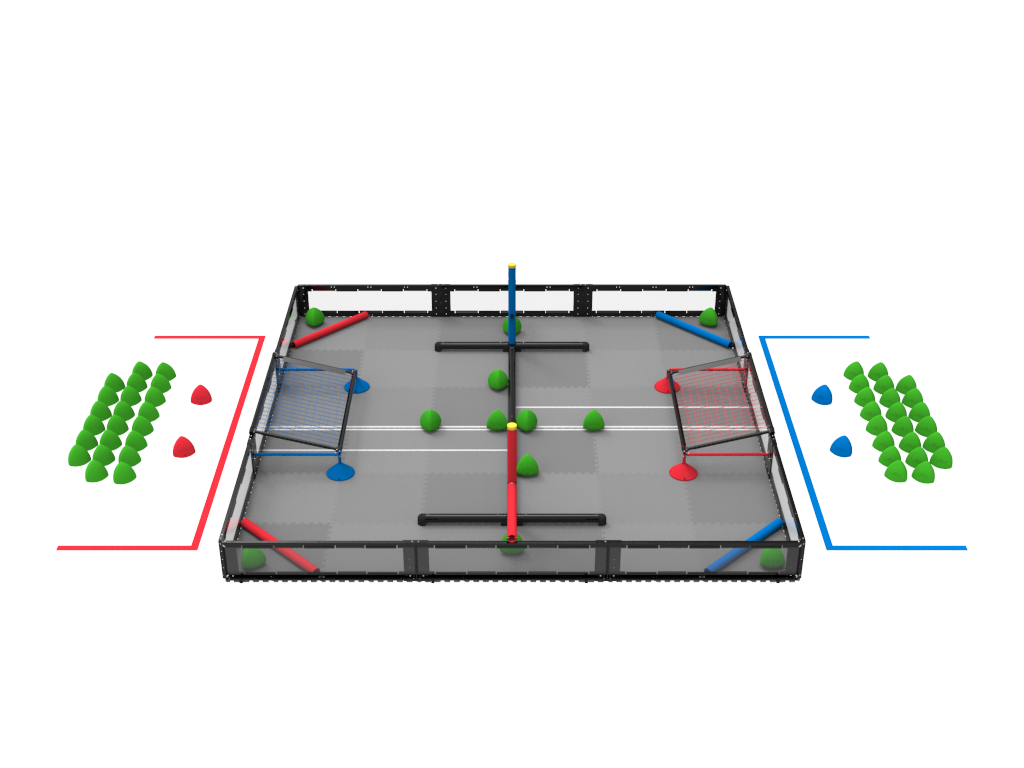

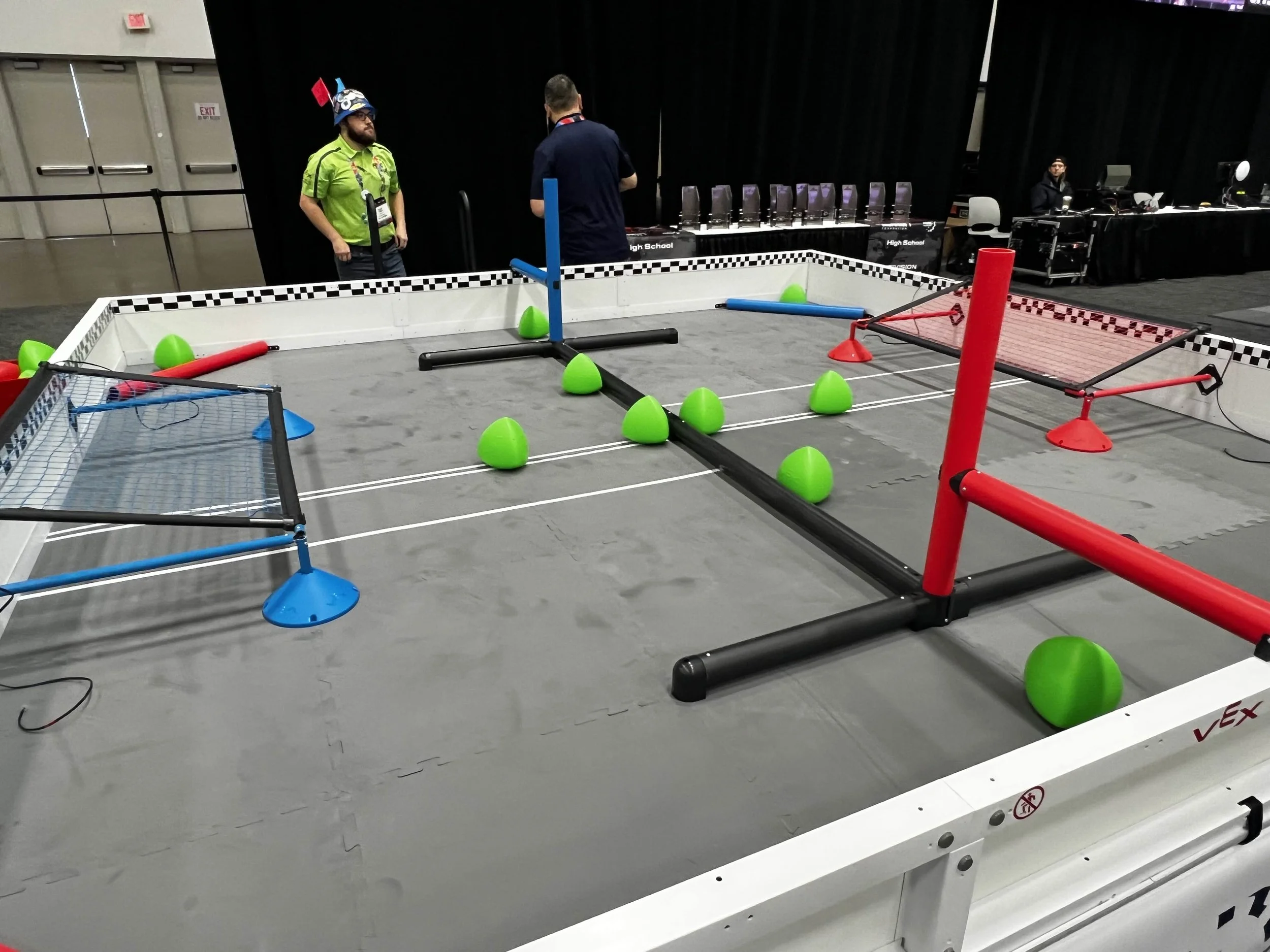

Teams are tasked with scoring a tribal into their alliance colored goal. Each tribal scored in the alliance’s goal will count as 5 points, each tribal outside of the goal on the alliance’s side is worth 2 points. Each alliance is given 22 match-loads and must score the tribal into the goal on the opposite side. However, each team is only allowed one tribal in their possession at one time. Teams are allowed to plow triballs while holding triball. In the last 30 seconds (endgame) teams are allowed to elevate using the colored pipes on each side of the field, called elevation bars. Each robots height off the ground will be measured to determine the elevation tier.

VRC High Stakes 2024-2025

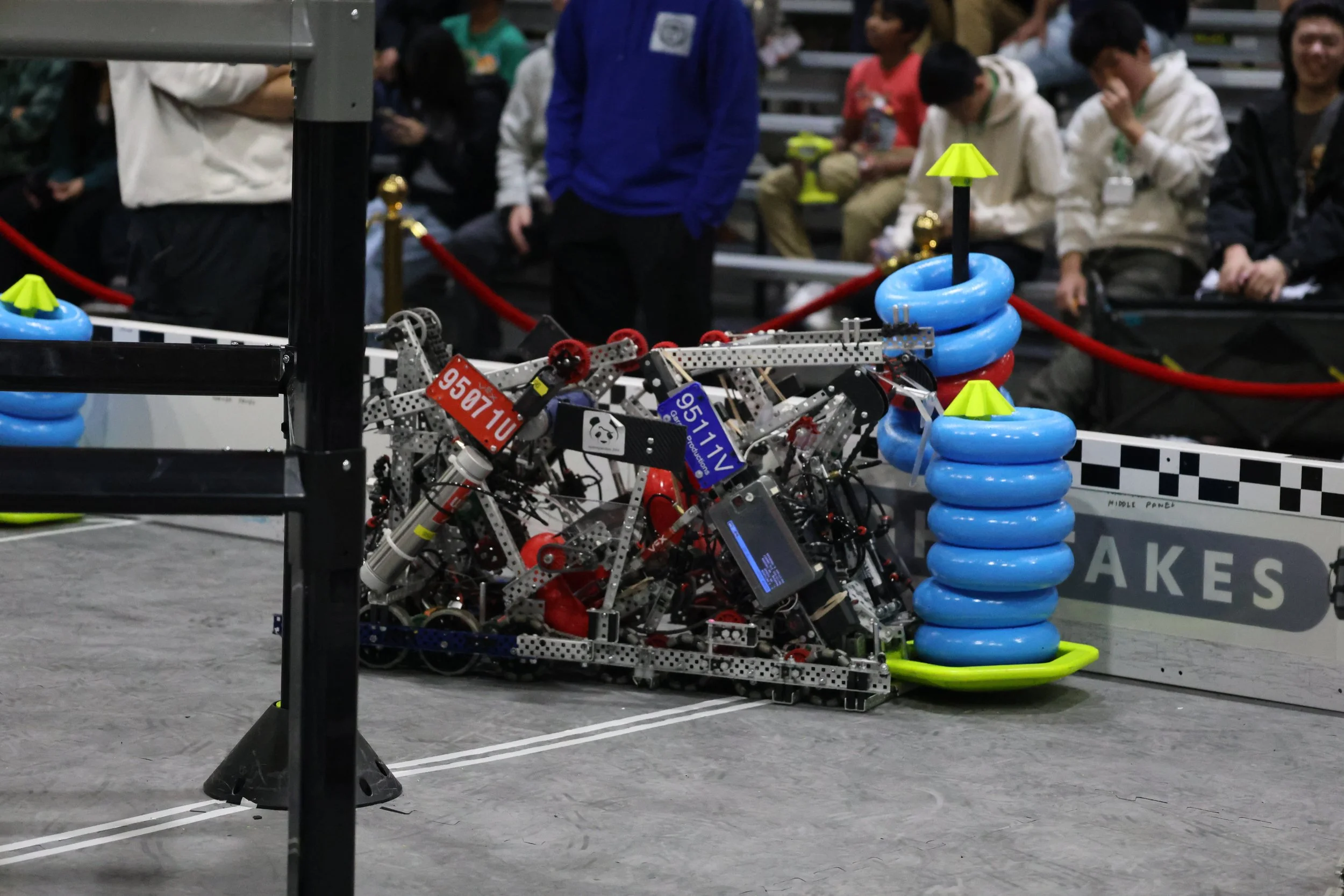

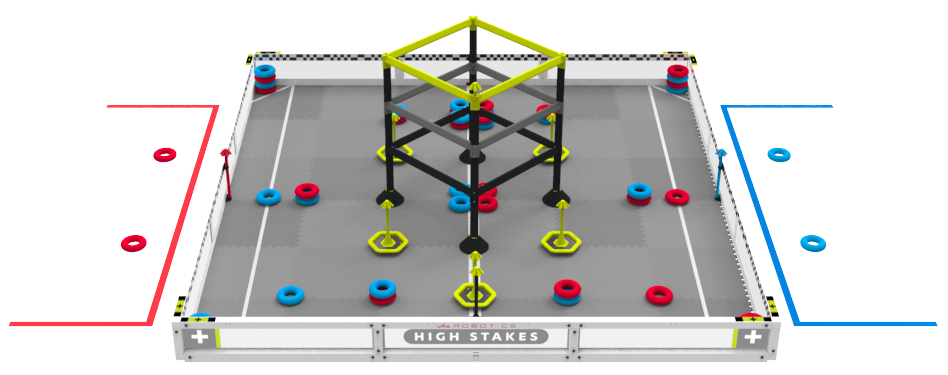

Teams are tasked with scoring rings onto a mobile goal (stakes). Each ring is worth 1 point unless the ring is the highest ring on the mobile goal which is worth 3 points. There are 2 wall stakes and 2 alliance stakes. There is one stake on top of the ladder which can only hold one ring (worth 3 points). However in the four corners there are 2 positive and 2 negative corners. Positive corners double the ring’s points on the mobile goal while negative corners, negative corners change the ring’s values to negative. Robots are only allowed to possess one mobile goal and 2 rings. In the last 30 seconds positive corners are protected and robots are allowed to climb the ladder. Each level on the ladder is doubled (Ie: Level 1 is 3 points, Level 2 is 6, Level 3 is 12, & Level 4 is worth 24 points)

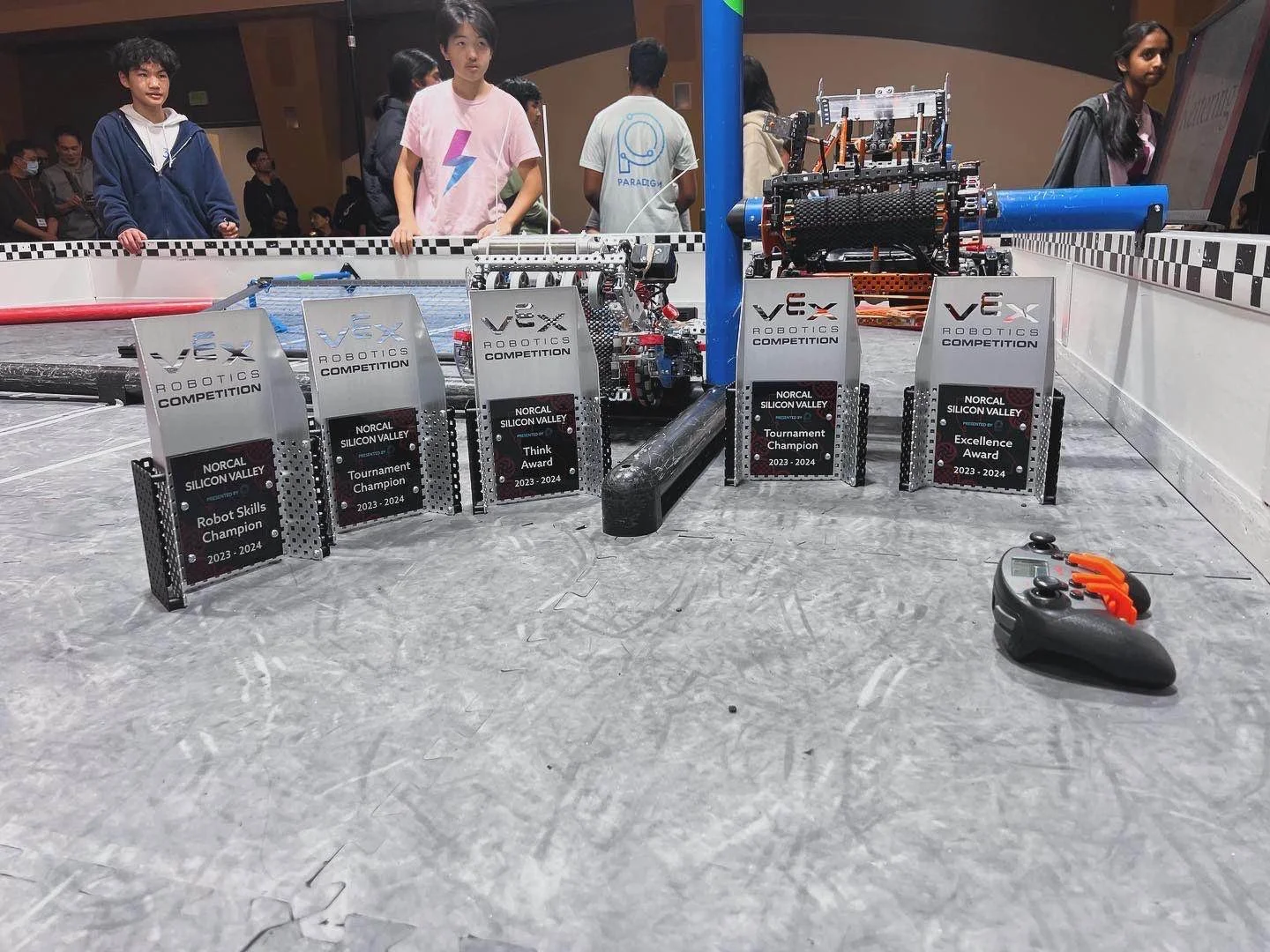

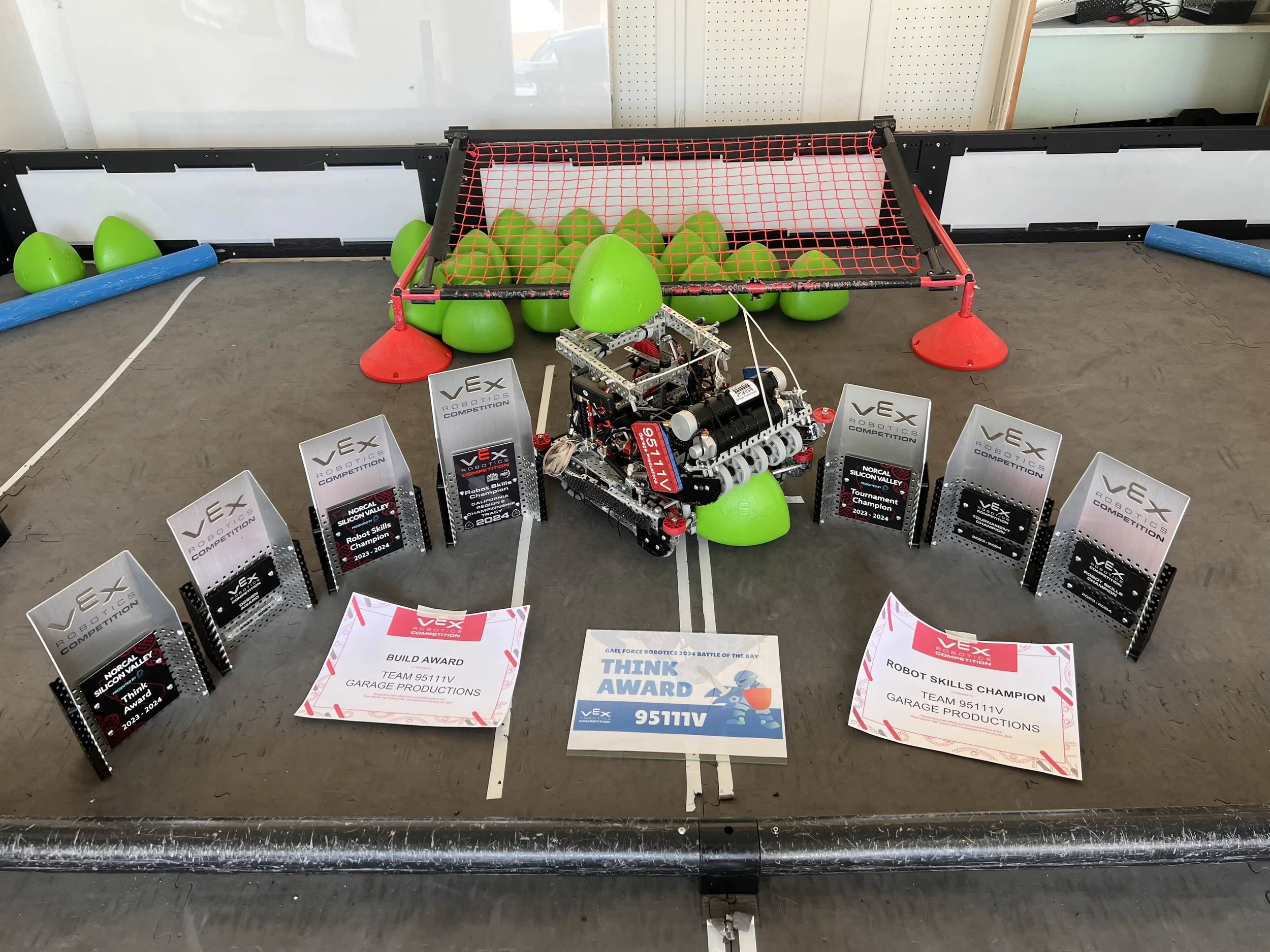

Team Accomplishments and Awards

Tournament Champion Awards

Tournament Champions (NorCal SV Over Under Tournament #2)
Tournament Champions (River Island High School VRC Tournament)
Tournament Champions (Northern CA SV Spin up tournament #3)
Tournament Champions (Tri-Valley tournament #3)
Tournament Champions (Bay Area High Stakes VRC #4)
Tournament Champions (California State Championship High Stakes)

Robot Skills Champion

Robot Skills Champion (NorCal SV Over Under Tournament #2)
Robot Skills Champion (River Island High School VRC Tournament)
Robot Skills Champion (2024 CA State Championship)
Robot Skills Champion 2nd Place (NorCal SV Signature Event)
Robot Skills World 3rd Place (World Championship)
9th Place In season Skills Leaderboard
1st place autonomous skills Nationally

Judging Awards

Design Award (Duel in Dublin #2)

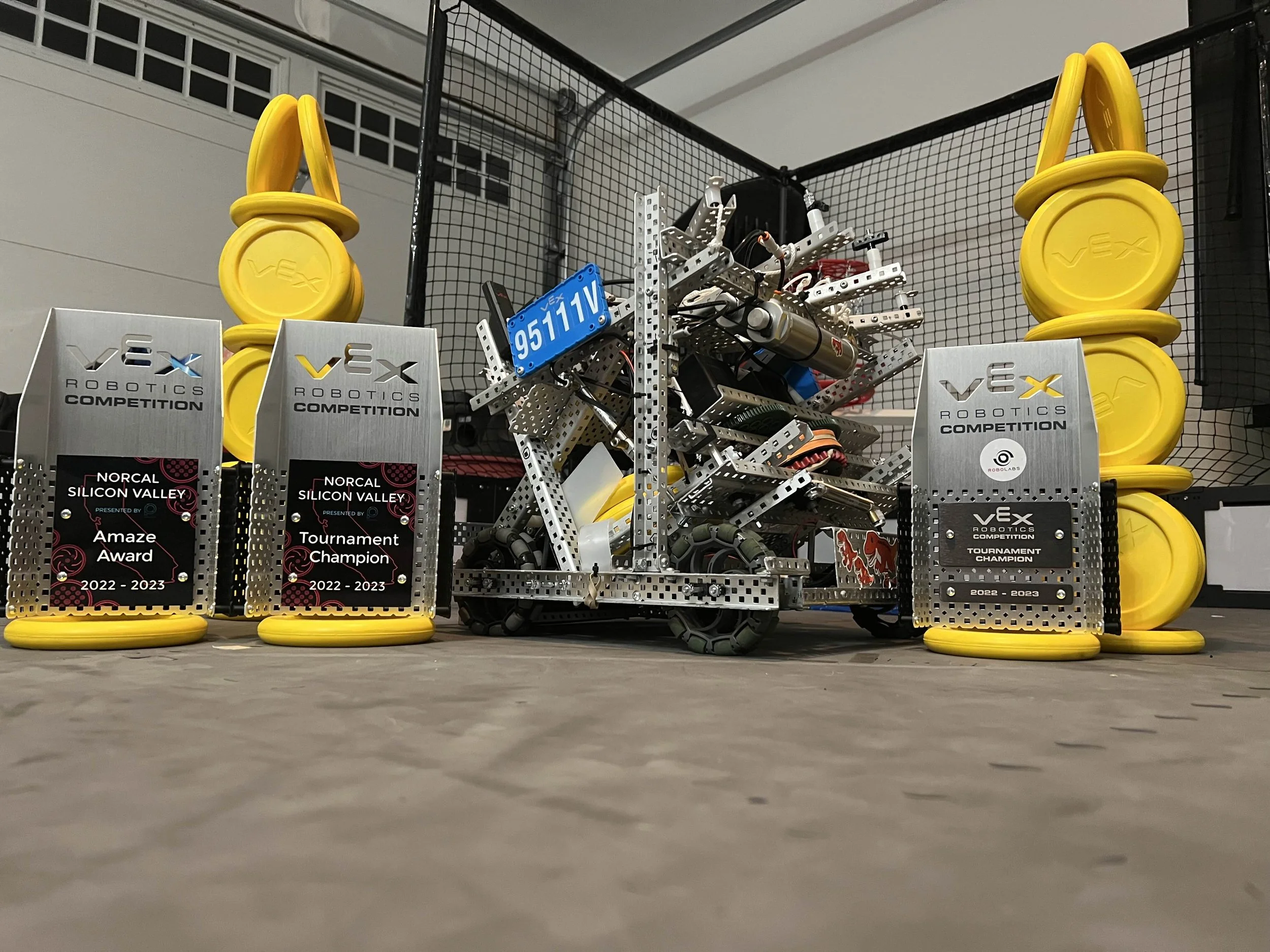

Amaze Award (Northern CA SV Spin up tournament #1)
Think Award(Battle of the Bay 2024)
Think Award (NorCal SV Over Under Tournament #2)

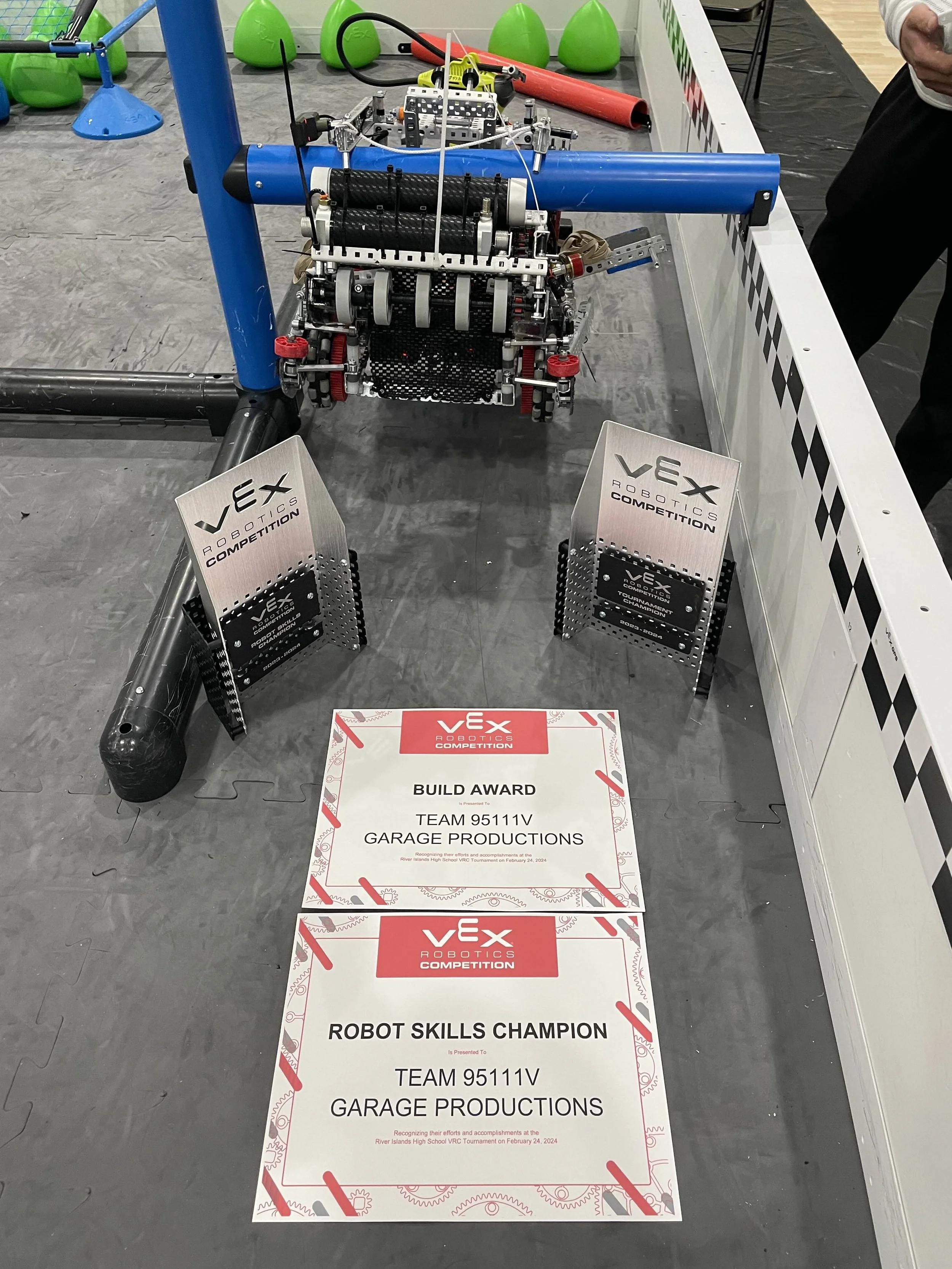

Build Award (River Island High School VRC Tournament)

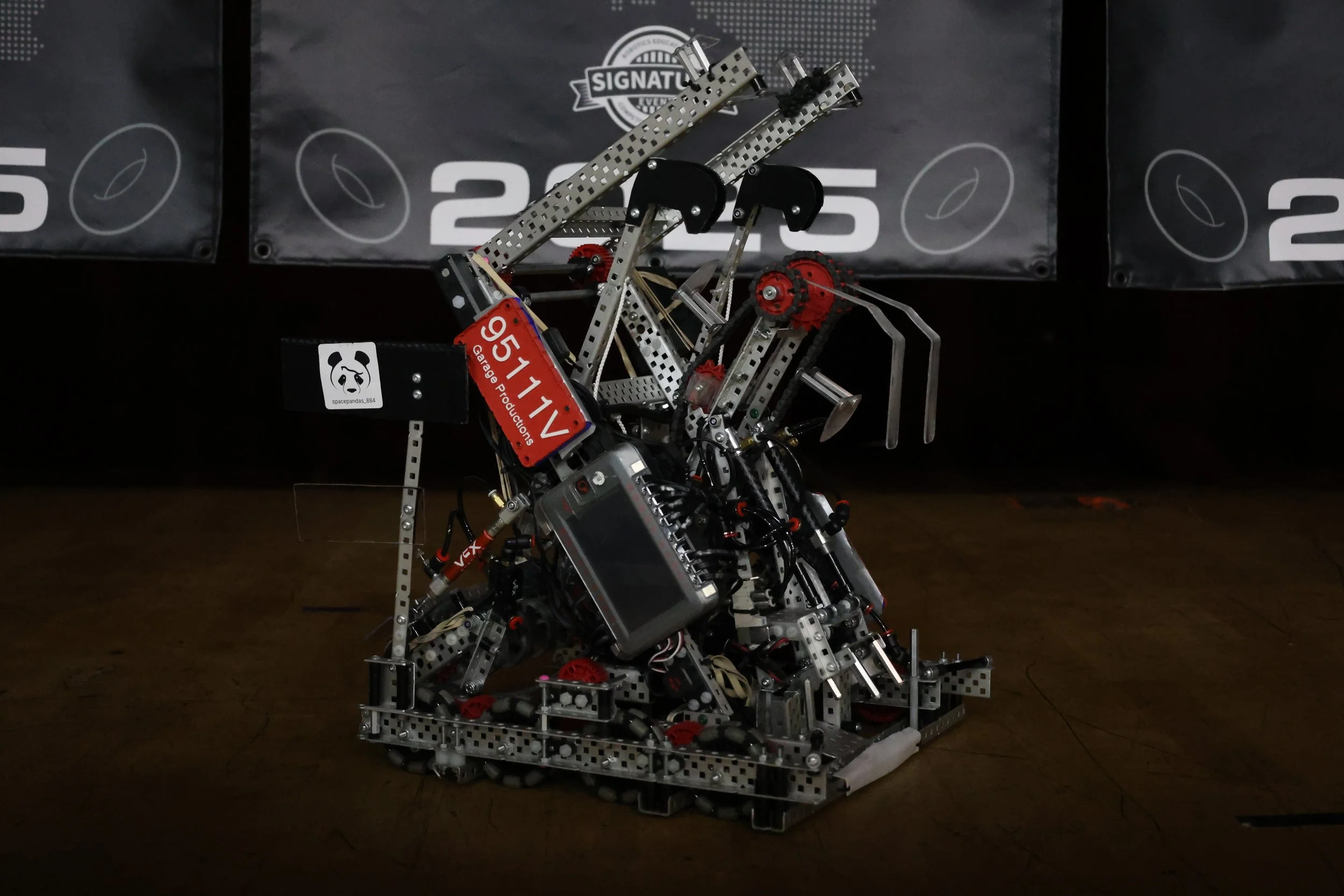

High Stakes

2024-2025

Team Members:

Zhongshi Wang (11) - Founder, Team Lead, Lead Programmer, Robot Designer, & Main Driver

Gavin Taan (11) - Lead Builder, Co-Programmer, Lead Strategist, Lead Scout, Drive Team Commander

Simon Jin (11) - Strategist, Builder, Drive Team Driver Commander, & Lead Notebook

Luke Choo (10) - Notebook, Drive team secondary driver commander, & scout

Seasonal Awards:

Tournament Champion
Tournament Champion

Photo Credits: Adit Sharma

California State Championship Vex V5: High School

Finals #1 (best of 2)

Score: 33-27 (Blue Win)

Round of 16

Score: 34-47 (Blue Win)

Skills: Rank 15, score: 101

Finals #2

Score: 43-30 (Red Win)

Semi-Finals

Score: 26-28 (Red Win)

Finals #3

Score: 0-34 (Red DQ for entanglement)

California State Championship Recap

NorCal Silicon Valley Vex V5 Robotics Competition Signature Event: High School

Overall Rank: 13 out of 104

Record: 7-2

Recorded by: Adit Sharma

Final Score: 49-26

Recorded by: Adit Sharma

Final Score: 27-22

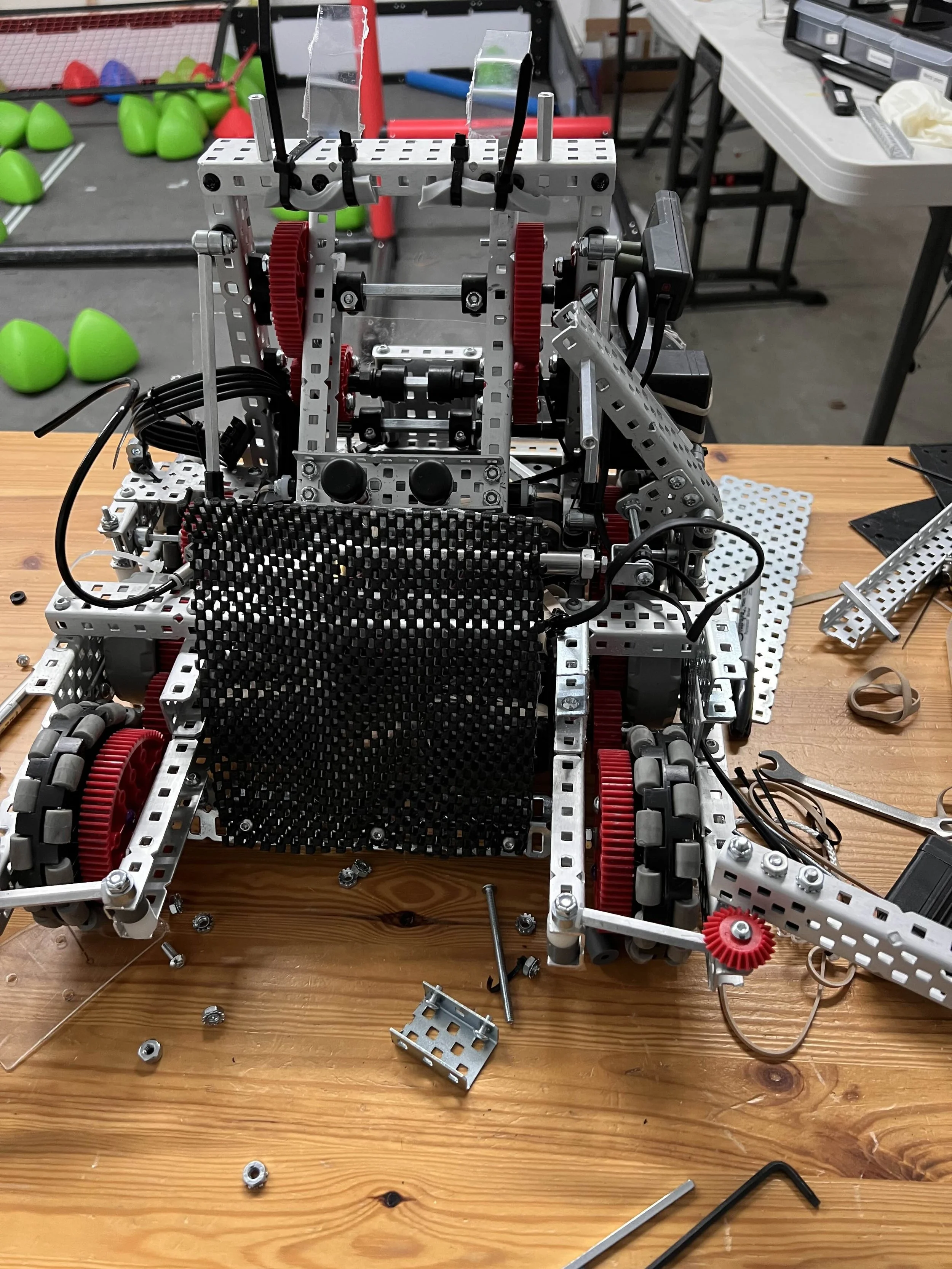

Over Under
2023-2024

Autonomous Skills 2nd attempt @ States

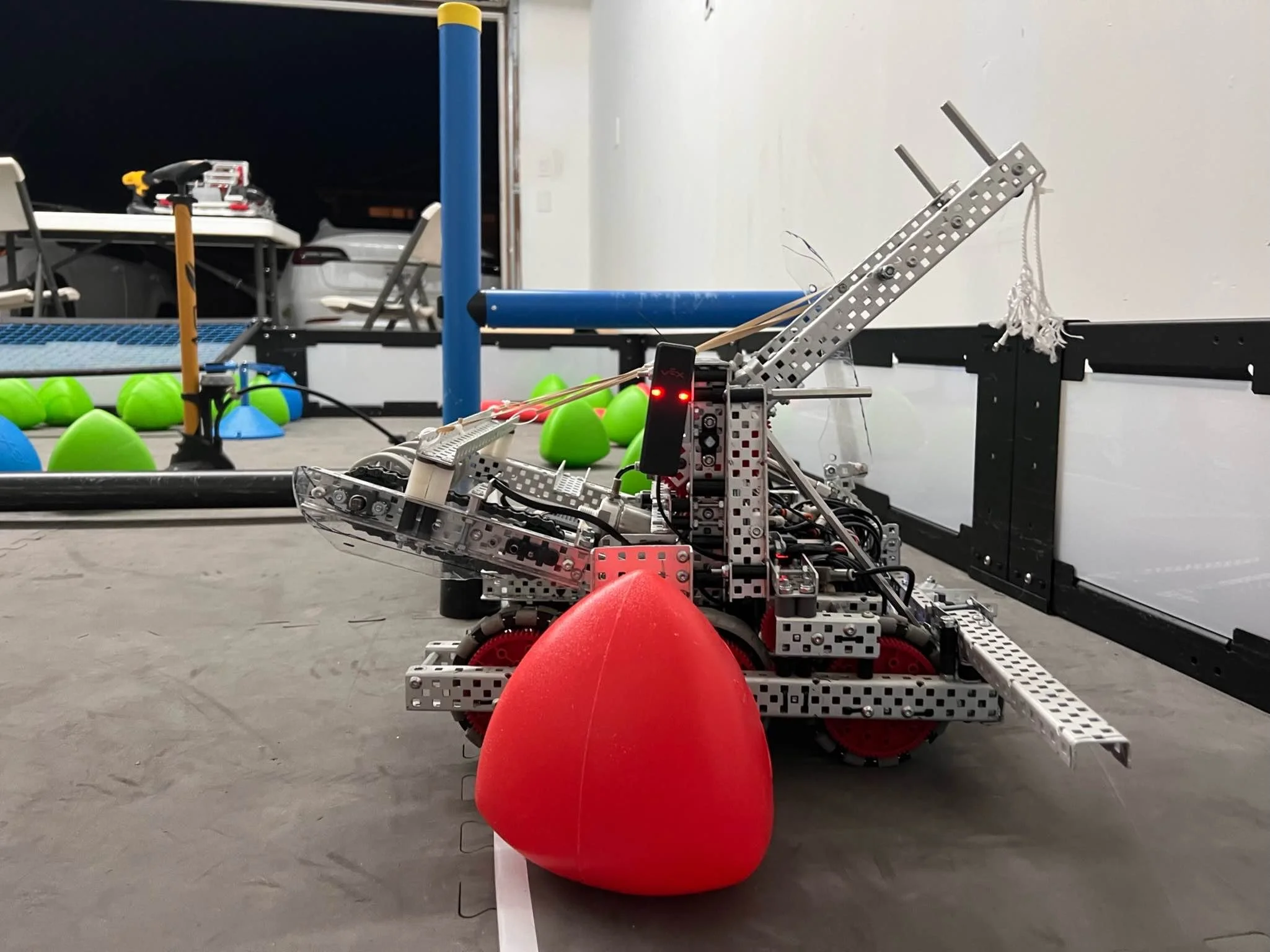

Our Kicker for skills took around 240-500 hours of tuning as the hitting angle all the way to the rubber band tension had to be tuned. This is for the tri-ball distribution around the goal. I spent about 20-40 hours a week for 3 months tuning this mechanism to win states. I spent a total of 430 hours from the December 2023-March 2024.

Rubber-band tension: 16.7 LBS

Angle: 19 degrees

RPM: 25 RPM

B-tier elevation

Autonomous Skills 1st attempt @ Worlds

We had to match load from the ground to the elevated field, which made it significantly harder as we ran a faster RPM. As well as the field acting like a trampoline due to the elevated field.

Rubber-band tension: 17.3 LBS

Angle: 26 degrees

RPM: 33 RPM

B-tier elevation

California State Championship Autonomous Skills 2nd attempt

World Championship Autonomous Skills 1st attempt

Team Members:

Zhongshi Wang (10) - Team Manager, Lead Coder, Driver

Gavin Taan (10) - Lead Builder, Co-coder, Lead Strategist, match loader

Simon Jin (10) - Strategist, drive team match loader, back-up driver

Felicia Guo (10) - Lead Notebook, Co-coder, scout

Team Roles: Notebook writer & builder

B-tier Elevation

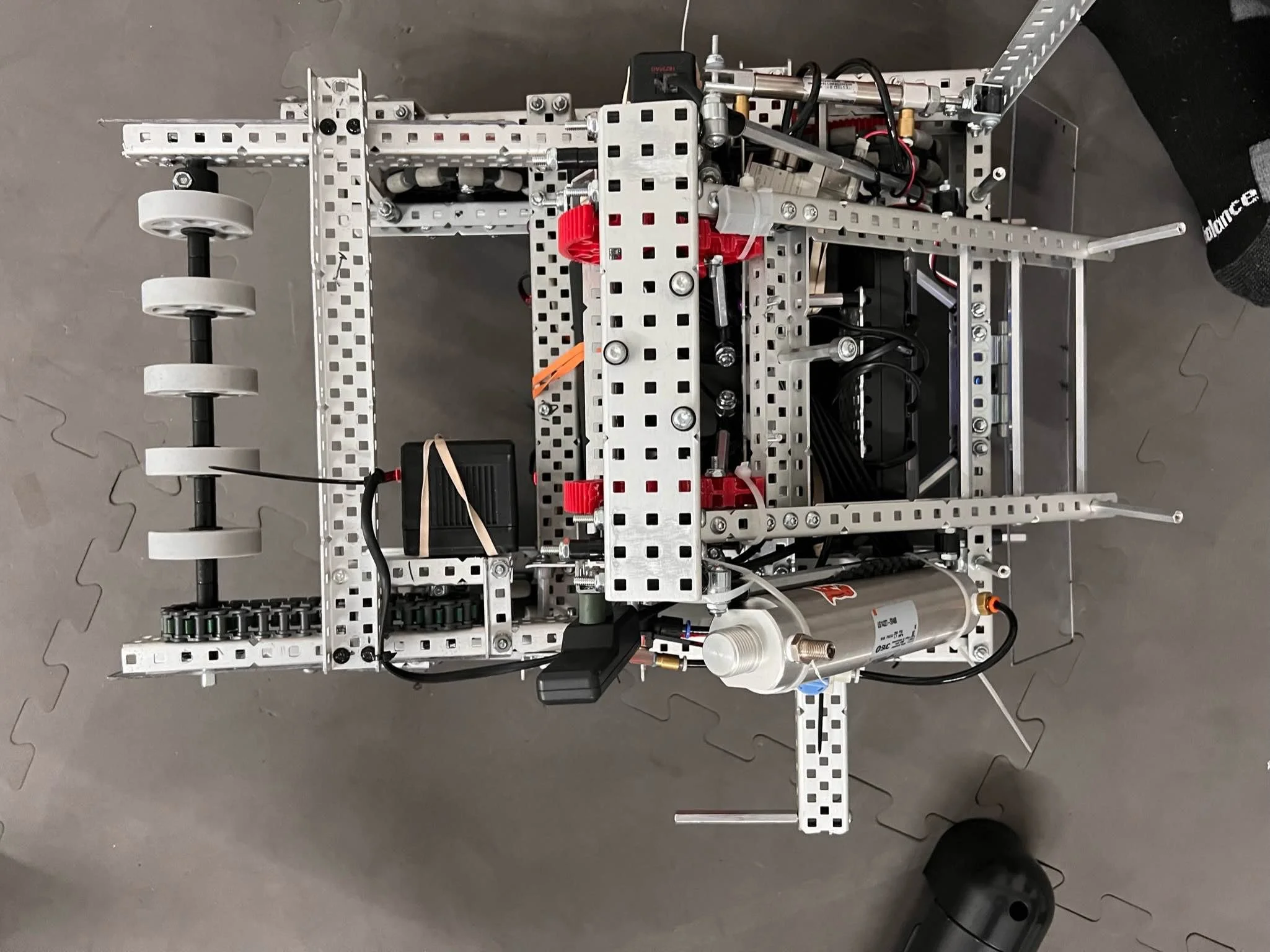

Robot Reveal Video
